0.5mm Pitch Fixtures
The Perfect Drop-In Solution For Your 0.5mm FFC Testing Needs
- Tailored for 0.5mm FFC Devices:
- Our fixtures are meticulously engineered to cater specifically to the requirements of 0.5mm FFC devices. This tailored design ensures a perfect match for your testing needs.
- An End to ZIF Connector Challenges:
- Say goodbye to the common pain-points associated with Zero Insertion Force (ZIF) connectors. Our fixtures eliminate the need for these intricate and often problematic connectors.
- Effortless Integration:
- Our fixtures are built to seamlessly integrate into your testing setup. They are designed as a hassle-free, “drop-in” solution, dramatically reducing the complexity and time involved in installation and configuration.
- Versatility with Precision:
- While primarily designed for 0.5mm devices, our fixtures are incredibly versatile and can be customized to accommodate your unique testing requirements..
DUT Contact Orientation: Up
0.5mm pitch, # contacts: 2-20
Note: If FPC has wings actual width will determine if MUS style or MUM style fixture is needed.
View 2D Drawing

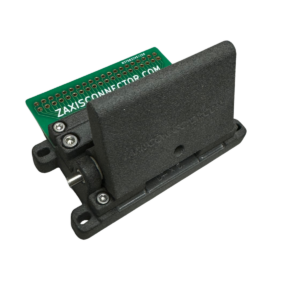

DUT Contact Orientation: Up
0.5mm pitch, # contacts: 21-40
Note: If FPC has wings actual width will determine if MUM or larger MUL style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Up
0.5mm pitch , # contacts: 41-60
Note: If FPC has wings actual width will determine if MUL or larger MUX style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Up
0.5mm pitch , # contacts: 61-80
Note: If FPC has wings actual width will determine if MUX or larger Original style fixture OUM is needed.
Please call us with your requirements.
DUT contact orientation into fixture: Down
0.5mm pitch , # contacts: 4-26
Note: If FPC has wings actual width will determine if MDS or larger MDM style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Down
0.5mm pitch , # contacts: 21-40
Note: If FPC has wings actual width will determine if MDM or larger MDL style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Down
0.5mm pitch , # contacts: 41-60
Note: If FPC has wings actual width will determine if MDL or larger MDX style fixture is needed.
Please call us with your requirements.
DUT contact orientation into fixture: Down
0.5mm pitch , # contacts: 61-80
Note: If FPC has wings actual width will determine if MDX or larger Orginal ODM style fixture is needed.
Please call us with your requirements.
DUT contact orientation into fixture: Up
0.5mm pitch , # contacts: Up to 65
Note: If FPC has wings actual width will determine if OUS or larger OUM style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Up
0.5mm pitch , # contacts : 81-100
Note: If FPC has wings actual width will determine if MDL or larger MDX style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Down
0.5mm pitch , # contacts: Up to 65
Note: If FPC has wings actual width will determine if ODS or larger ODM style fixture is needed.
View 2D Drawing
Please call us with your requirements.
DUT contact orientation into fixture: Down
0.5mm pitch , # contacts: 85-100
Note: If FPC has wings actual width will determine if ODM or larger style fixture is needed.
View 2D Drawing
Please call us with your requirements.
